Products model

CNC-Medium Series

50CNC（Max Ø50mm）

65CNC（Max Ø65mm）

75CNC（Max Ø75mm）

80CNC（Max Ø80mm）

90CNC（Max Ø90mm）

CNC-Medium Series

CNC-Medium Series

Whatsapp：+86 18913625580
E-mail：jeff.jiang@yuetaimachine.com

Detail

Technical Specifications Unit 18 25 38 50 65 75 80 90 100 115 130 168 219 273
Max Bending Capacity – Carbon Steel (σs = 400 MPa) mm φ18*1.6 φ25*2 φ38*2 φ50*2.0 φ65*2.5 φ75*2.5 φ80*2.5 φ89*2.5 φ100*2.5 φ114*5 φ130*5 φ168*15 φ219*16 φ270*20
Max Bending Capacity – Stainless Steel (σs = 600 MPa) mm φ15*1 φ20*1.0 φ32*1.2 φ42*1.2 φ52*1.5 φ62*2 φ65*2 φ70*1.5 φ80*1.5 φ102*2 φ114*2.5 φ152*4 φ190*10 φ252*10
Min Centerline Bending Radius (CLR) mm 1.5D< 1.5D< 1.5D< 1.5D< 1.5D< 1.5D< 1.5D< 1.5D< 1.5D< 1.5D< 1.5D< 1.5D< 1.5D< 1.5D<
Max Capacity – Square / Rectangular Tubes mm 12*1.2 16*1.5 28*1.5 40*1.5 45*2 50*2 50*2.5 60*2.5 65*2.5 90*2.5 95*3 110*5 180*10 200*12
Max Bending Diameter (Customizable with Push Bending Assist) mm φ10 φ20 φ34 φ48 φ52 φ62 φ74 φ89 φ98 φ114 φ114 φ140 φ190 φ250
Bending Radius Range (Min – Max CLR) mm 10-80 10-140 15-150 20-180 30-200 35-230 40-250 40-270 40-285 50-350 60-400 90-800 120-800 130-1000
Max Bending Angle degree 190 190 190 190 190 190 190 190 190 190 190 190 190 190
Max Center Distance Between Two Bends (R1 – R2) mm 30 40 65 65 75 85 100 110 120 130 130 145 170 180
Max Feed Length with Mandrel mm 3000 3000 3000 3200 3500 4000 4700 5000 5300 8000 8000 5800 8000 7000
Max Straight Length from Clamp to End (For Easy Loading) mm 2000 2000 2500 2500 2500 2800 2900 3000 3500 4000 4000 4500 4800 5200
Table Height (Center of Bending Die to Floor) mm 1100 1100 1100 1150 1215 1215 1200 1305 1115 1450 1450 1470 1800 1800
Bending Die Center Height mm 22 30 38 38 50 65 68 68 75 90 90 150 165 185
Max Bending Speed (BOD – Bend on Distance) deg/sec 220 220 160 105 100 75 65 58 47 40 25 20 10 6
Bending Accuracy (± mm or ±°) degree ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.1 ±0.1 ±0.15 ±0.15 ±0.2
Max Feeding Speed (DBB – Distance Between Bends) mm/sec 2000 2000 1400 1400 420 400 360 360 360 260 260 240 230 215
Feeding Accuracy (± mm) mm ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.1 ±0.1 ±0.1
Max Rotation Speed (POB – Plane of Bend) deg/sec 300 300 300 200 200 200 240 220 200 170 170 140 100 80
Rotation Accuracy (±°) mm ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.05 ±0.15 ±0.15 ±0.2
Hydraulic Motor Power kw 2.2 4 4 5 7.5 7.5 15 15 15 22 22 30 45+11 55+11
Machine Width mm 760 760 1150 1300 1850 1450 2100 2180 2300 1700 2000 2400 3500 3800
Machine Height mm 1300 1300 1450 1450 1780 1400 1770 1800 2170 2100 2100 2150 2500 2700
Machine Length mm 3500 4050 4900 5350 5800 6200 6290 6850 7800 7000 9000 9300 13500 15000
Machine Weight kg 1100 1500 3000 3500 5900 6000 6700 7900 10000 12000 13000 16000 32000 50000
CNC-Medium Series

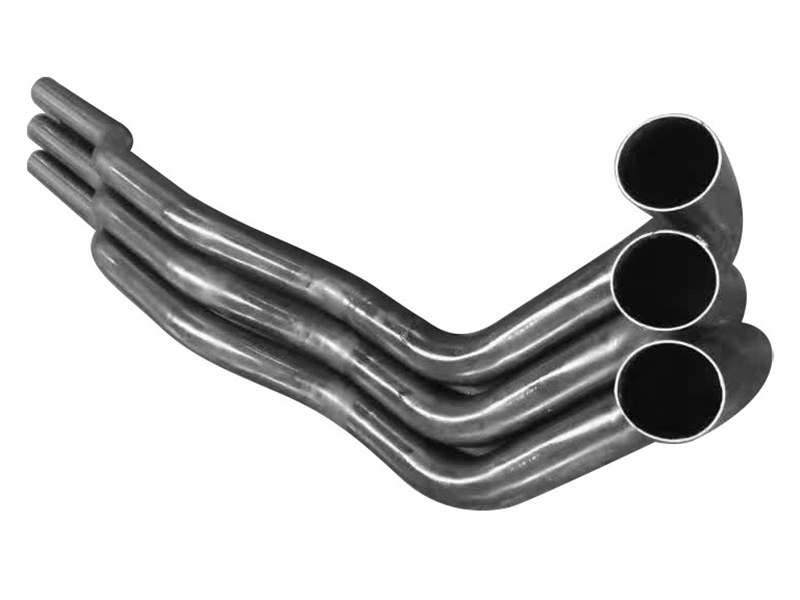

CNC Full Automatic Bending Machine

  • Equipped with 3 4 electric CNC axes
  • Multiple tube bending stacks
  • Yuetai tube benders can offer one of the highest performance solutions available in the market

CNC Full Automatic Bending Machine

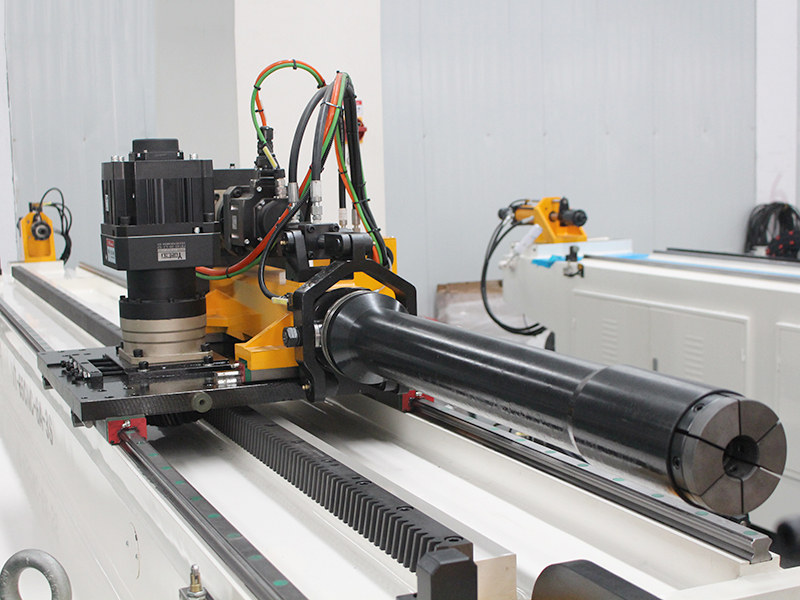

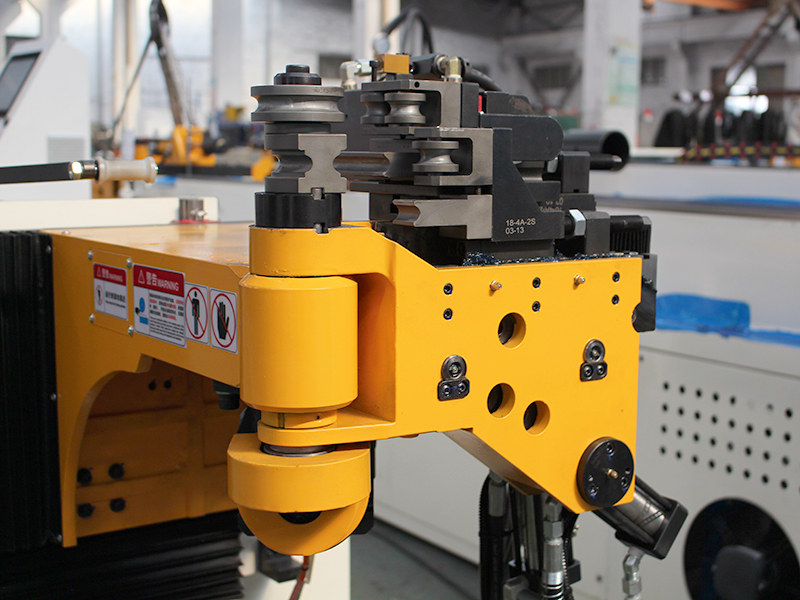

  • Side positioned bending head and carriage

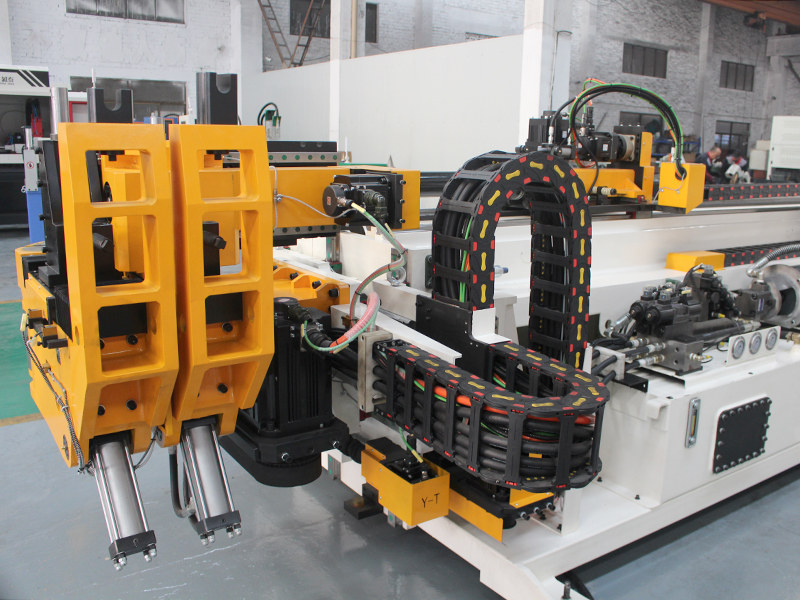

  • Centralized lubrication for sliding area
    Automatic mandrel lubrication
CNC-Medium Series1
CNC-Medium Series2

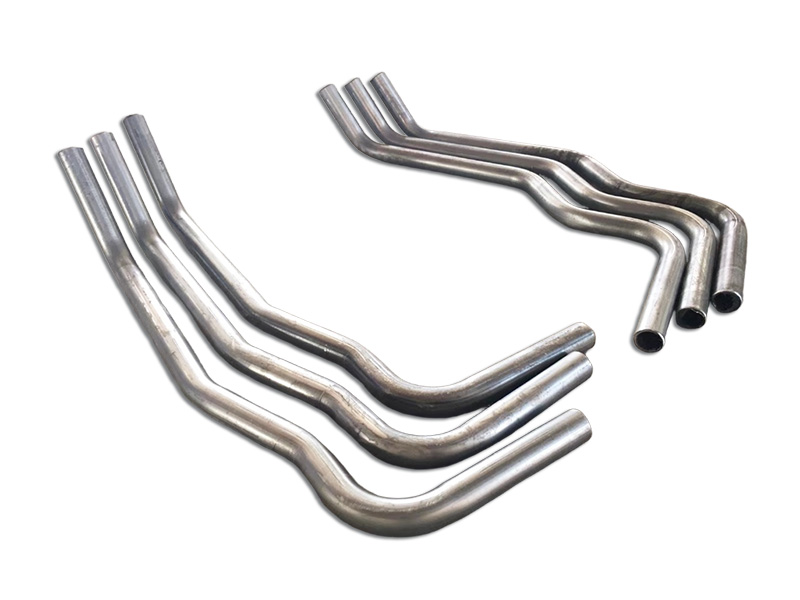

CNC Full Automatic Bending Machine

  • Controls software
  • Single or multi-stacks
  • Independent pressure die system for each tube bending stack
CNC Full Automatic Bending Machine

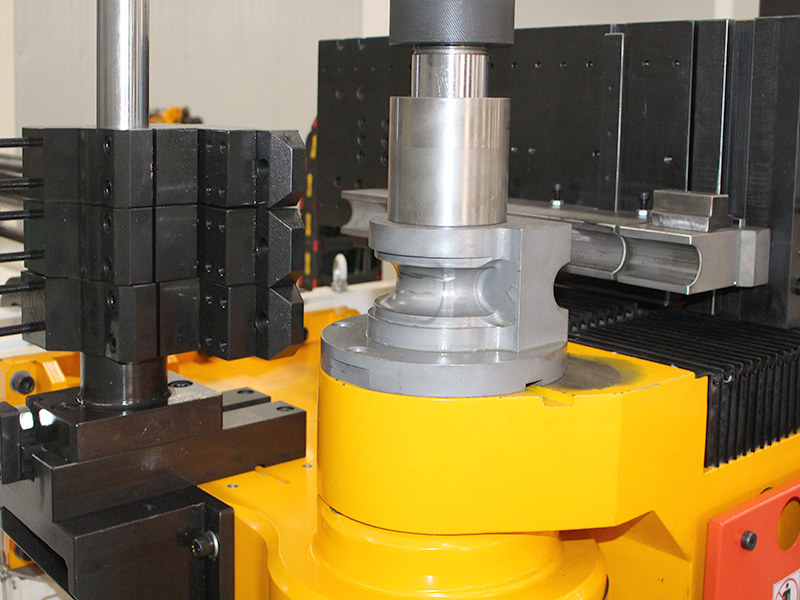

  • Wiper die seat and lubrication

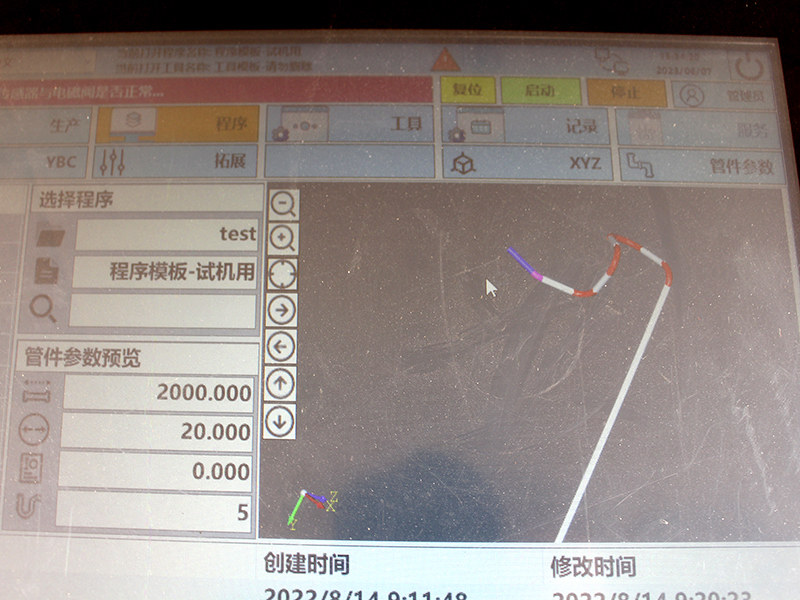

    3D Display and Rotation of Parts
  • XYZ and YBC coordinates conversion
    Mirroring and image reversal of parts
CNC-Medium Series3
CNC-Medium Series4
CNC Full Automatic Bending Machine

  • Fully Automatic and Cost-Effective.
  • This Pipe Bending line equipped with 3 programmable axes:

Feeding – Electric Servo;
Rotation – Electric Servo;
Tube Bending – Hydraulic (NC).
